The Advantages of
Laminated Metals
By using laminated shims
you put greater precision and quality with speed into modern
production. In thin layers of foil .002’’ (.051mm) and .003’’ (.076mm)
thickness bonded into solid packs. Laminated metals cut machining costs
and simplify assembly operations.
No more counting single
shims. Laminated shims offer the easiest method of making critical
adjustments during assembly thereby eliminating costly machining time.

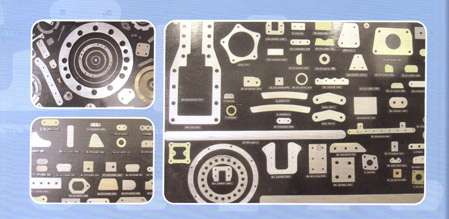

Intricate shapes and sizes can be manufactured to your own drawing
requirements from 'one off' to the largest production runs.
MATERIALS:
- Aluminium - Brass- Steel - Stainless Steel – Cadmium
Plated Steel – Copper Standard sheets from 1/64’’ (0.40mm) to 1/8’’
(3.18mm) thickness in either .002’’ (.051mm) or .003’’ (.076mm)
laminations.
SHEET
SIZES
|
All
Resin Bonded Material
|
Specifications
|
Aluminium
|
24x24 (610mm x
610mm)
|
BS.1470/1050
|
Brass
|
24x24 (610mm x
610mm)
|
BS.2870/CZ108 H/H
|
Steel
|
24x24 (610mm x
610mm)
|
BS.1449 Part 1 CS4
|
Stainless Steel
|
24x24 (610mm x
610mm)
|
BS.5770 Part 4
1981.302S25
|
Cadmium Plate
|
24x24 (610mm x
610mm)
|
BS.1449 Part 3B
CS4
|
Copper
|
24x24 (610mm x
610mm)
|
BS.899 HH C101
|
|
